Optimization of the stabilization process of aqueous TiO 2 pigment dispersions for dip coating applications by means of electrokinetic sound amplitude

Oringinal article: https://analytik.news/fachartikel/2021/36.html

The high-quality white pigment titanium dioxide has many applications. Coagulation or agglomeration of a TiO2 dispersion must be avoided at all costs, both in the manufacturing process and in the processing, e.g. by manufacturers of paints and coatings. This applies in particular to highly filled systems, such as pigment preparations and pigment pastes, where a high degree of particle stabilization is indispensable.

Purely electrostatic stabilization is not sufficient to stabilize highly concentrated pigment preparations and pigment pastes in such a way that they do not exhibit flocculation and segregation states during storage and processing.

For this reason, highly filled systems are stabilized either purely sterically or in a certain ratio of electrostatic and steric stabilization. Stabilization with electrostatic and steric components is referred to as electro-steric stabilization.

Illustration of the measurement setup

Fig.1: Illustration of the measurement setup
Fig.1: Illustration of the measurement setup
(a) ESA probe, (b) measurement chamber,
(c) mechanical stirrer, (d) pipette,
(e) dispersion, (f) pH probe and
(g) conductivity probe. [Source:
“Electroacoustic Quantification of Surface
Bound Ligands in Functionalized Silica and
Iron Oxide Nanoparticles”, Whiley Publishers]
By adjusting the ratio of electrostatic to steric stabilization, it may be possible to adjust the viscosity properties of the products. To maintain structural viscosity properties, as is often required in the field of paints and coatings, electrostatic stabilization is often necessary. For viscosities that should be independent of the shear rate (Newtonian viscosity behavior), purely steric stabilization may be useful.

The electroacoustic ESA measuring technique used is used to record the stabilization process during the addition of additives to an aqueous TiO2 pigment preparation (Figure 1). The measured data show the level and type of stabilization as a function of the added additive concentration. By using the ESA method, additive concentrations can be determined which lead to defined electro-steric or steric stabilization ratios. These dispersion states, which are now known, can then be transferred to the formulation development or formulation optimization of a pigment preparation.

In summary, the following advantages result from the use of the ESA measuring technique for recording a stabilization process through the addition of additives:

  • Assignment of quantitative stability states to the added additive quantities.
  • Exact adjustment of electro-steric or pure steric stabilization states.
  • Avoidance of additive excess by detection of the complete surface coverage with the surface affine additive groups.
  • Estimation of the polymer layer thickness applied to the particles by the electrical double layer.
  • Control of dispersion products after storage or in production.
  • Evaluation of the ESA raw data signal enables measurement and evaluation without knowledge of the physical substance data. With knowledge of physical substance data, an exact derivation of the zeta potential from the ESA raw data signal is possible.

Materials, measurement technology and devices

The materials used for the measurements and the measuring technique are listed below. The measurements were carried out by the company Pulveranalyse Dipl.-Ing. Daniel Moog, a contract laboratory specializing in dispersion analysis. Two titanium dioxide pigment grades were tested which are to be used in highly concentrated pigment preparations as a pre- product in the sector of water-based dip coating products.


Aqueous TiO2 dispersion 10 % wt solids.
Solvent-free wetting and dispersing additive for waterborne coating applications, consisting of a copolymer with pigment affinity groups.

  • TiO2-Pigment SP-Rutile for paints and coatings TINOX R-2160
  • TiO2-Pigment SP Rutile for paints and coatings TINOX R-2140


ESA measuring system with high sensitive probe with 500 kHz measuring frequency. 50 ml Teflon measuring cell, pH sensor, conductivity and temperature sensor, adjustable stirring system to prevent sedimentation during measurement. Software for data recording.Devices:Ultraturrax T18 for dispersion with tool S18 N-19G

Results and discussion

By measuring the electrokinetic sonic amplitude, the processes during the stabilization of the TiO2 grades in aqueous dispersion can be accurately recorded.

The results show that the additive used in the concentration of (4-7) % recommended by the additive manufacturer leads to electro-steric mixing stabilization for both TiO2 pigments (Figure 2 and 3). The wetting and coating of the TiO2 pigment surfaces with the additive polymer leads to a decrease in the zeta potential, which is also a measure of the thickness of the applied polymer layer. The ratio of electrostatic to steric stabilization can be detected and thus precisely adjusted.

zeta potential of TINOX R-2160 TiO2 pigment

Fig.2: Recording of the decrease of the zeta potential of TINOX R-2160 TiO2 pigment during additive addition. The measurement
was carried out under strong stirring, which prevents sedimentation and ensures homogeneous mixing.
Recording of the decrease of the zeta potential of TINOX R-2160 TiO2 pigment during additive addition

zeta potential of TINOX R-2140 TiO2 pigment

Fig.3: Recording of the decrease of the zeta potential of TINOX R-2140 TiO2 pigment during additive addition. The measurementwas carried out under strong stirring, which prevents sedimentation and ensures homogeneous mixing.
Recording of the decrease of the zeta potential of TINOX R-2140 TiO2 pigment during additive addition.

In the concentrations of (4-7)% on TiO2 recommended by the additive manufacturer, electrostatic mixing stabilization occurs for both pigment grades, with higher electrostatic contents remaining for TINOX R-2140 at the same additive concentration. The results show that the recommended additive concentrations of the additive manufacturers are good guidelines, but that the surface chemistry of the titanium dioxide pigments can vary so much due to post-treatment processes and manufacturing methods that for many TiO2-pigment grades a precise adjustment of the formulation is necessary. This is especially true when highly filled systems are manufactured at the maximum possible concentration, as is the case with pigment formulations and pigment pastes.
The ESA technique used in the present experiments has been elaborated in a particular way for different applications.

In the technical production process, dispersions are usually highly concentrated, turbid, colored or tempered. They are often electrostatically influenced by added additive formulations. Often the sedimentation of the mixture in the reactor must be prevented by powerful agitators. Stability analysis by means of electrokinetic sonic amplitude includes all parameters. Thus, the data of the samples analyzed in highly concentrated form can be directly transferred to the electrokinetic properties of the dispersed particles in the raw material or in the finished product.

By controlled recording of the stabilization process, it was possible to develop a stable semi-finished product with TINOX R-2140 as a pigment preparation with 78% TiO2 for aqueous dip coating applications, which showed no tendency to agglomeration even during subsequent strong dilution processes. The stabilization process could be deciphered a bit further and the dispersion states can be checked by means of ESA technology for process and quality control (see illustration Figure 4).

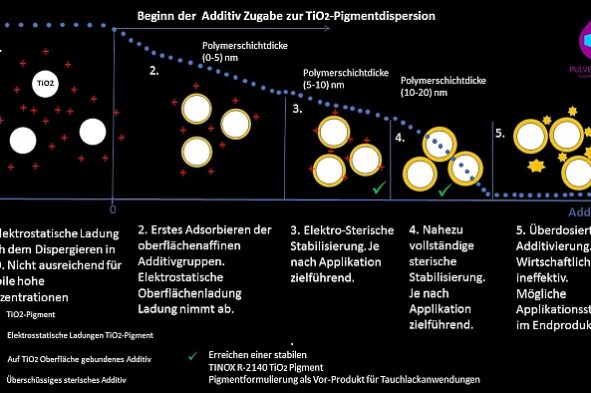

metrological recording of stabilization prozess

Fig.4: Illustration of the metrological recording of the stabilization process.
Illustration of the metrological recording of the stabilization process

Information on the measurement method used
From a scientific point of view, the use of the ESA measurement technique is a method for direct quantification of accessible hydroxide groups on the surface of particles and a profound way for surface quantification of different ligands. While electrophoretic methods for zeta potential surface characterization for technical applications are limited by too high dilutions, sedimentation processes, irregular particle shape or inaccessible physical substance data, the ESA method is a complementary measurement technique for analysis in technical applications.

The ESA method for characterizing the charge stability of particles in a dispersion is an electroacoustic measurement technique.

An oscillating voltage is applied to a suspension, dispersion or emulsion, which is generated by an alternating current source. Charged particles in the dispersion oscillate at the frequency of the externally applied electric field. One or more frequencies can be applied. The oscillation of the particles at these frequencies generates sonic waves. The amplitudes of these sonic waves are measured as electrokinetic sonic amplitude (ESA). This ESA signal is proportional to the dynamic mobility of the particles and this in turn is proportional to the zeta potential of the particles present in the dispersion. A prerequisite for the use of this effect is a certain density difference between dispersion medium and particle. To generate evaluable signals, this density difference must be at least 0.2 g/cm3.
